Capture Card Input
A Capture Card is a device that is connected to or installed inside a system and is used to directly connect to another device (such as a camera) via a cable (i.e. HDMI) to feed in that device’s video output and/or images into the system.
SubC DVR systems come equipped with DeckLink and/or Osprey Capture Cards.
See Blackmagic DeckLink Capture Cards Models https://www.blackmagicdesign.com/ca/products/decklink/models
See System Requirements - SubC Supports Decklink Duo and Decklink 4K
-

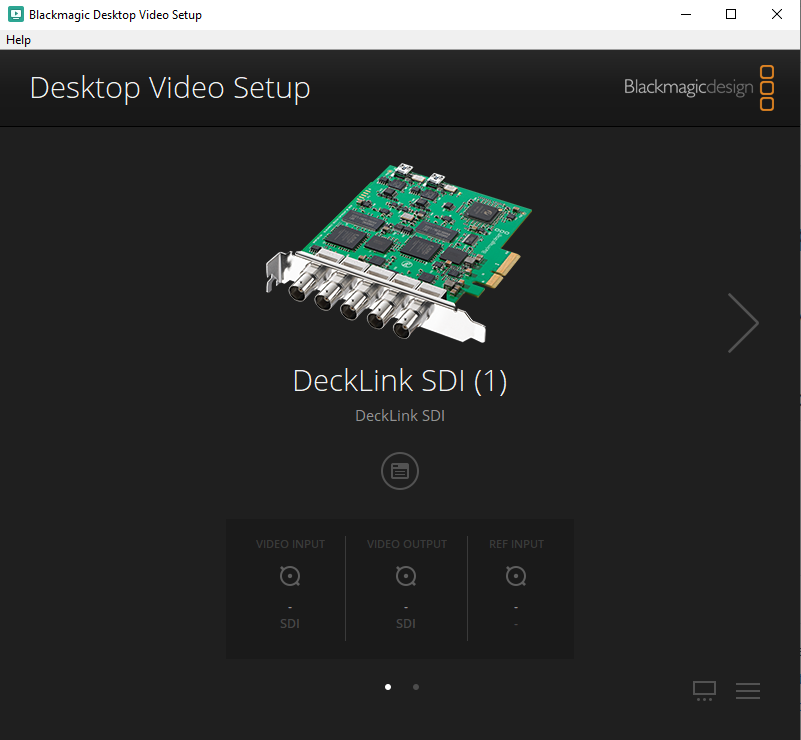

If Blackmagic Decklink Capture Card is installed on your system, you can also check the card details by opening Blackmagic Desktop Video Setup from the Windows Start Menu
See Osprey Capture Cards Models https://www.ospreyvideo.com/capture-cards
See System Requirements - SubC Supports Osprey 460e
-

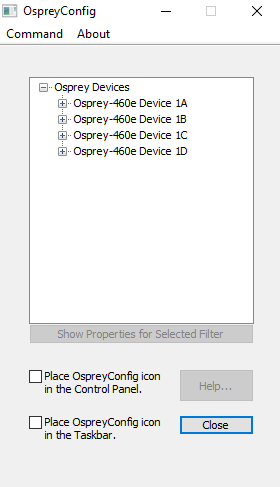

If Osprey Capture Card is installed on your system, you can also check the card details by opening Osprey Config from the Windows Start Menu.

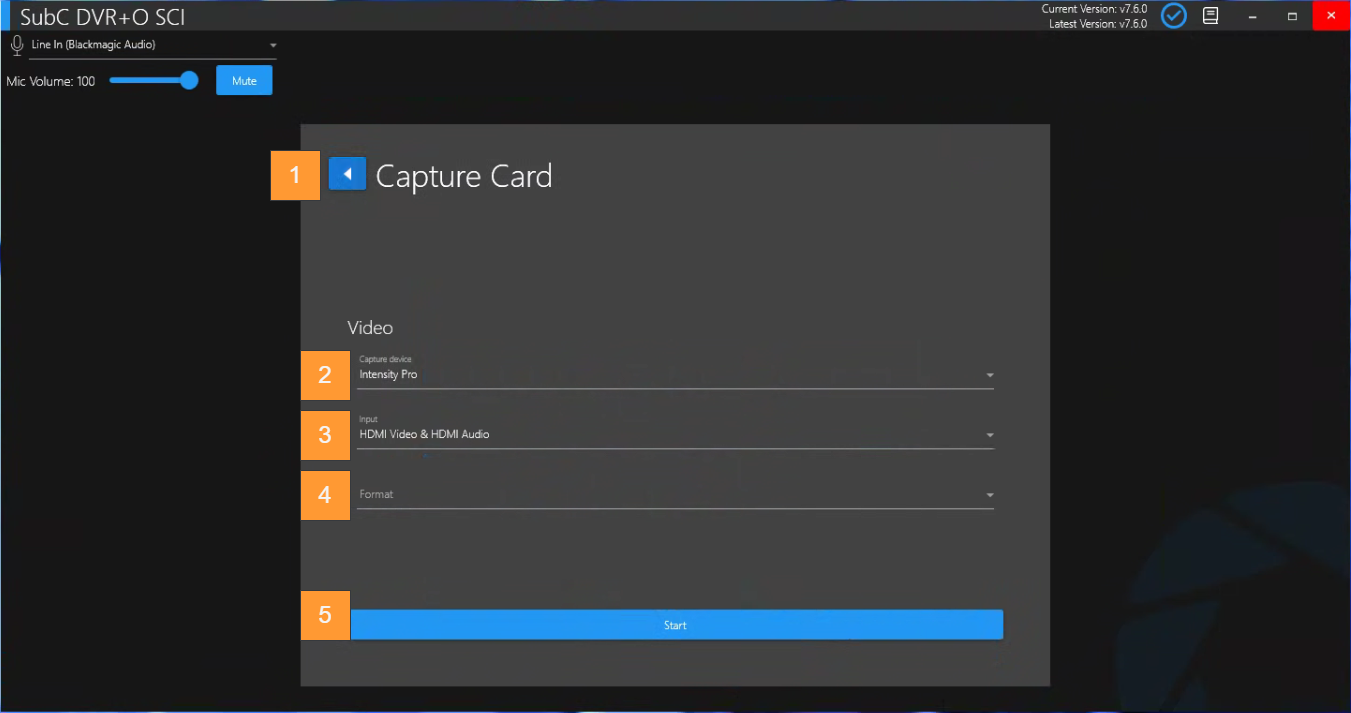

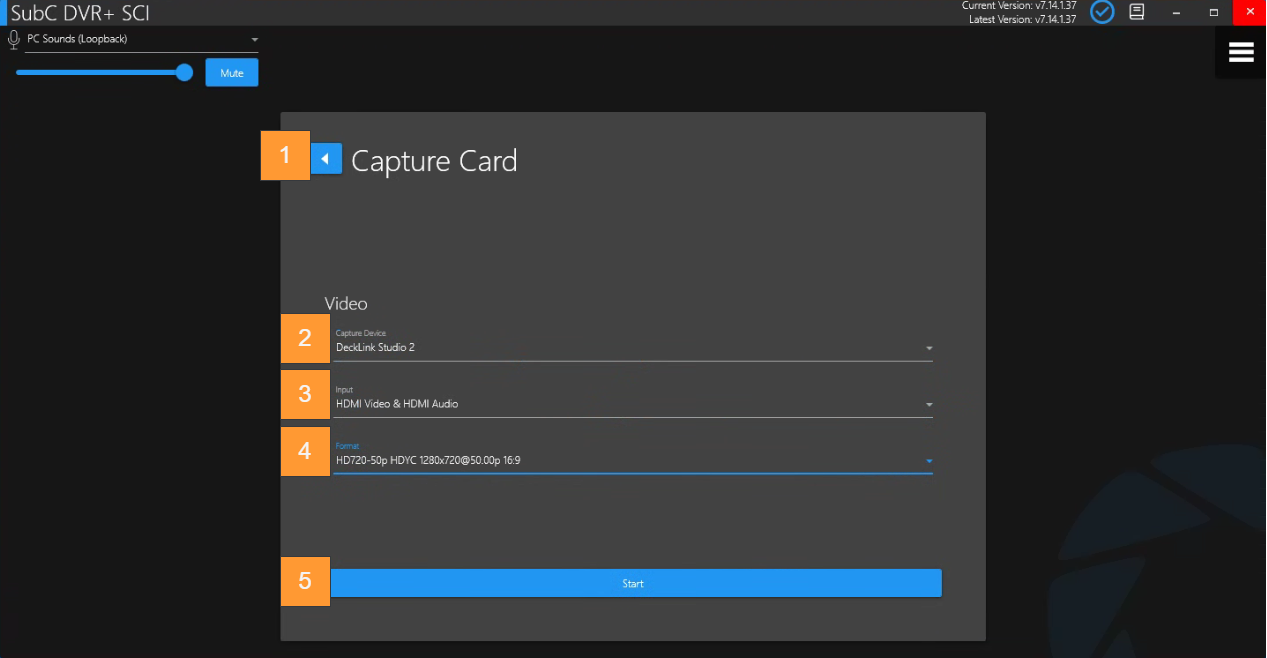

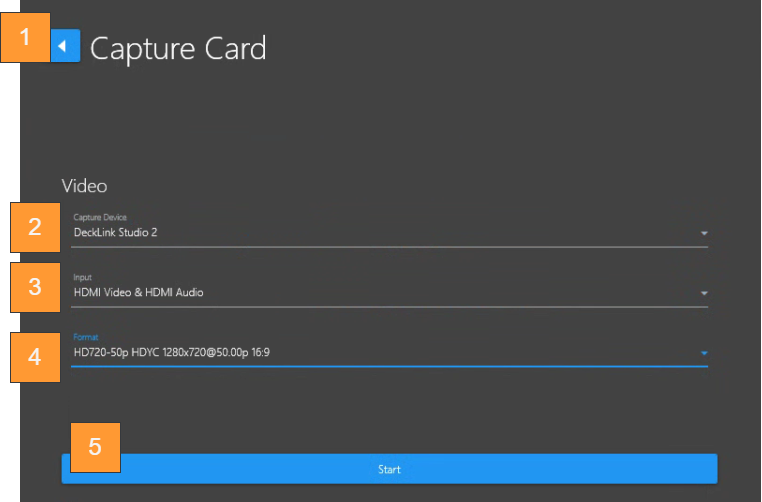

Capture Card configuration window.
-
Back – Return to the Input screen.
-
Video → Capture device – Drop-down field shows connected capture cards installed on your computer.
-
Video → Input – Drop-down field shows a list of input options available on the selected Capture card.
-
Video → Format – Drop-down field shows a list of video formats available on the selected Capture card.
-

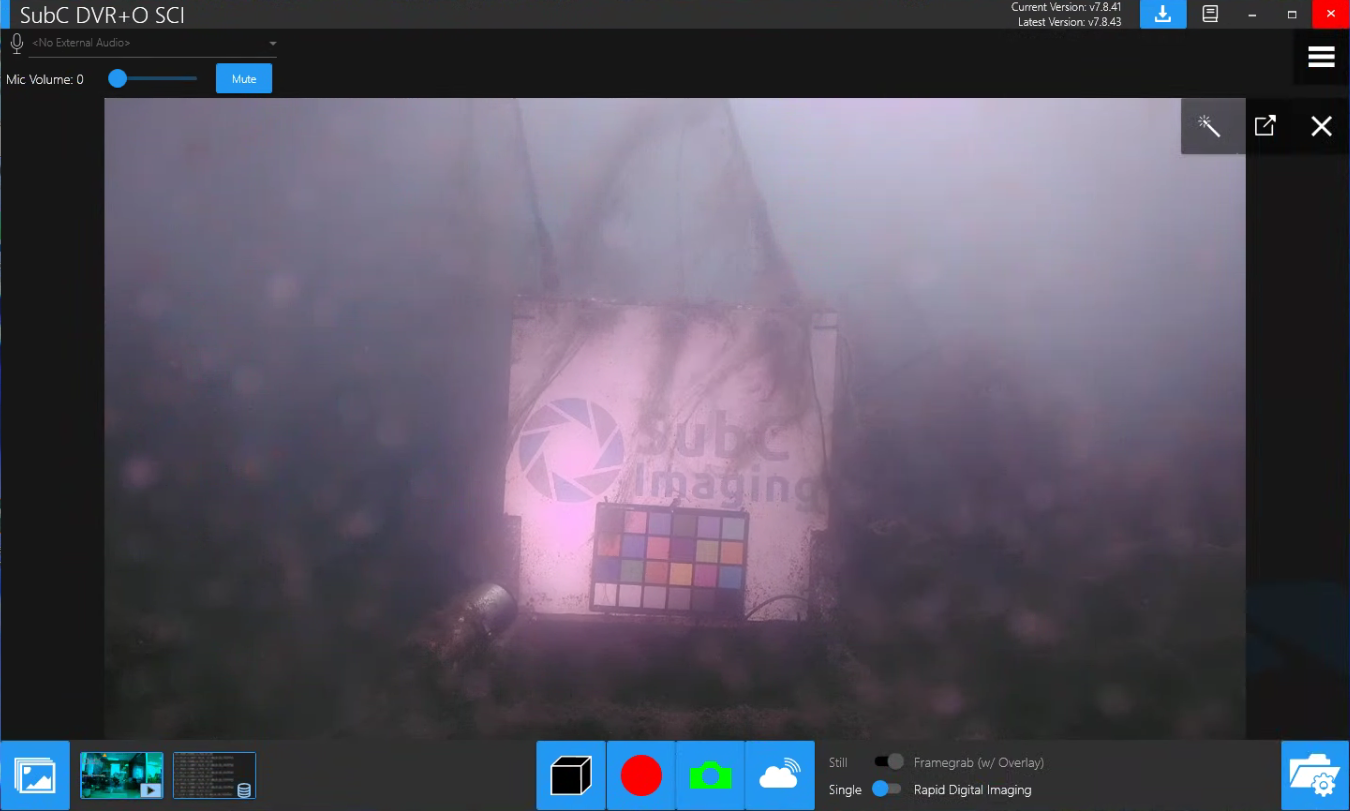

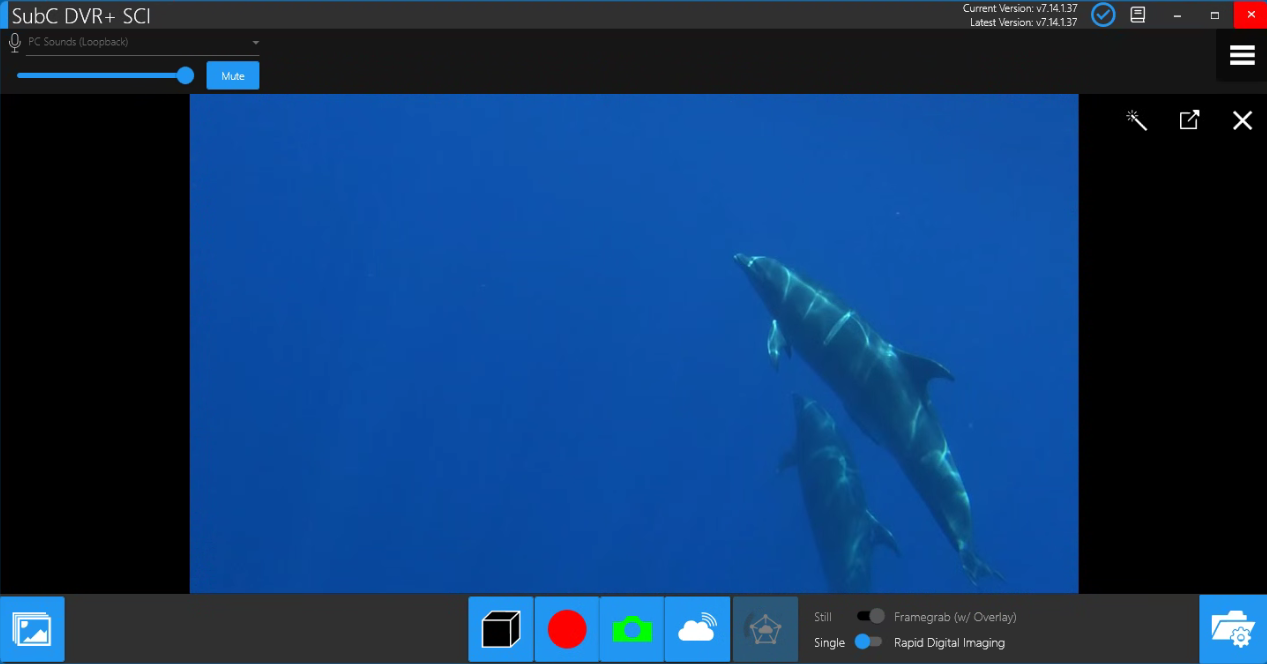

Start – Start the Capture Card input video feed.
